  • PD46N5
  • PD46N6
  • PD55N3
  • PD55N6
  •

    Model PD46N5
    Backlight LED
    Bezel Ultra narrow bezel 5.9mm
    Display Screen Size 46''
    Product Size (mm) 1024.11(H)x578.7(V)x107.5(D)
    Display Size (mm) 1018.08(H)x572.67(V)
    Pixel Pitch 0.53025(H)x0.53025(V)
    Resolution 1920x1080
    Brightness 700 cd/m2
    Contrast Ratio 3500:1
    Viewing Angle 1780
    Colors 16.7M
    Response Time 8ms
    Color Temperature 10000K
    Life Time 50000 hours
    Power Consumption 148W

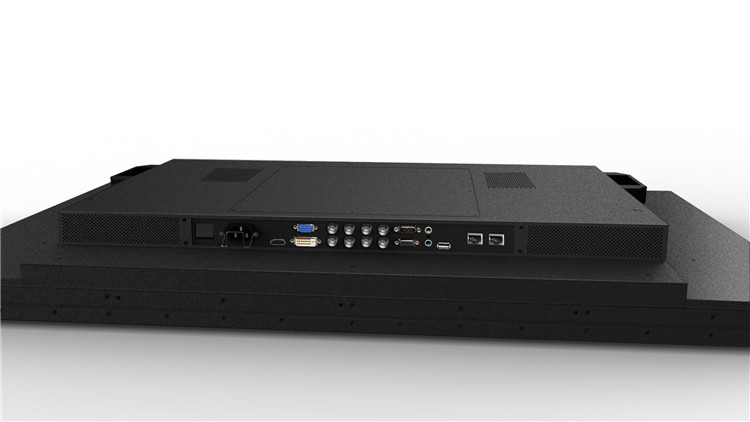

    Input Port Video, VGA, DVI, RGB/HV, YPbPr, HDMI
    Output Port Video, Audio
    Control Port RS232 IN   DB9(female) RS232 OUT  DB9(male)
    Accessories Remote control, AC Power Cord, VGA cable
  •

    Model PD46N6
    Backlight LED
    Bezel Ultra narrow bezel 5.9mm
    Display Screen Size 46''
    Product Size (mm) 1024.11(H)x578.7(V)x125.2(D)
    Display Size (mm) 1018.08(H)x572.67(V)
    Pixel Pitch 0.53025(H)x0.53025(V)
    Resolution 1920x1080
    Brightness 500 cd/m2
    Contrast Ratio 3500:1
    Viewing Angle 1780
    Colors 16.7M
    Response Time 8ms
    Color Temperature 10000K
    Life Time 50000 hours
    Power Consumption 132W
    Input Port Video, VGA, DVI, RGB/HV, YPbPr, HDMI
    Output Port Video, Audio
    Control Port RS232 IN   DB9(female) RS232 OUT  DB9(male)
    Accessories Remote control, AC Power Cord, VGA cable
  •

    Model PD55N3
    Backlight LED
    Bezel Ultra narrow bezel 5.7mm
    Display Screen Size 55''
    Product Size (mm) 1215.3(H)x686.1(V)x109.3(D)
    Display Size (mm) 1209.6(H)x680.4(V)
    Pixel Pitch 0.63(H)x0.63(V)
    Resolution 1920x1080
    Brightness 700 cd/m2
    Contrast Ratio 3500:1
    Viewing Angle 1780
    Colors 16.7M
    Response Time 8ms
    Color Temperature 10000K
    Life Time 50000 hours
    Power Consumption 189W
    Input Port Video, VGA, DVI, RGB/HV, YPbPr, HDMI
    Output Port Video, Audio
    Control Port RS232 IN   DB9(female) RS232 OUT  DB9(male)
    Accessories Remote control, AC Power Cord, VGA cable
  •

    Model PD55N6
    Backlight LED
    Bezel Ultra narrow bezel 5.7mm
    Display Screen Size 55''
    Product Size (mm) 1215.3(H)x686.1(V)x127(D)
    Display Size (mm) 1209.6(H)x680.4(V)
    Pixel Pitch 0.63(H)x0.63(V)
    Resolution 1920x1080
    Brightness 500 cd/m2
    Contrast Ratio 3500:1
    Viewing Angle 1780
    Colors 16.7M
    Response Time 8ms
    Color Temperature 10000K
    Life Time 50000 hours
    Power Consumption 153W
    Input Port Video, VGA, DVI, RGB/HV, YPbPr, HDMI
    Output Port Video, Audio
    Control Port RS232 IN   DB9(female) RS232 OUT  DB9(male)
    Accessories Remote control, AC Power Cord, VGA cable

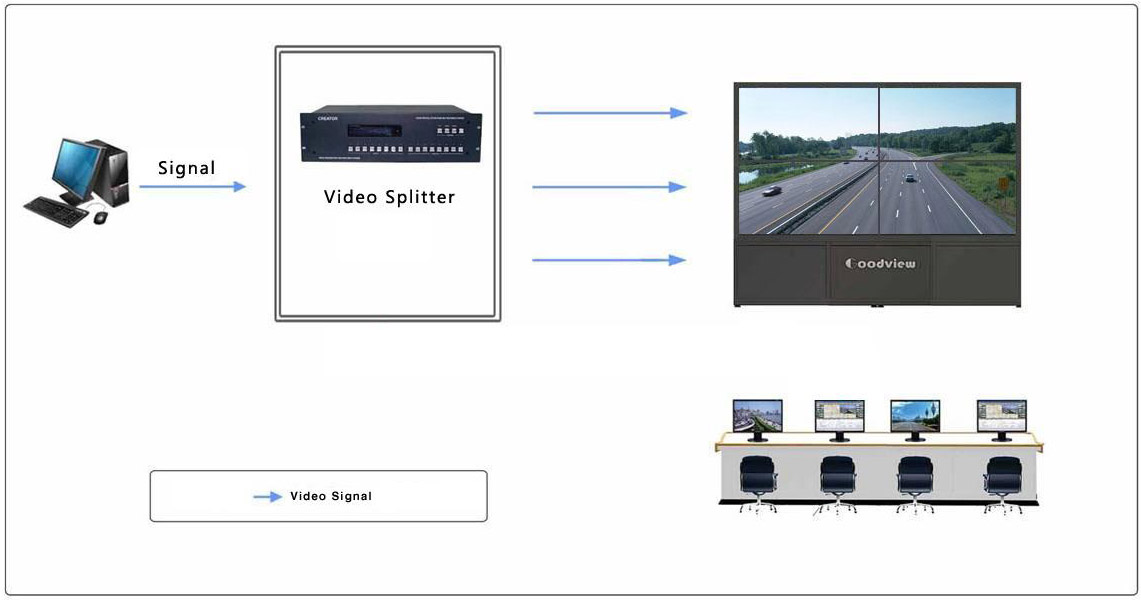

Solution 1

Display one whole content on the lcd video wall units for single input signal by simply using video splitter.

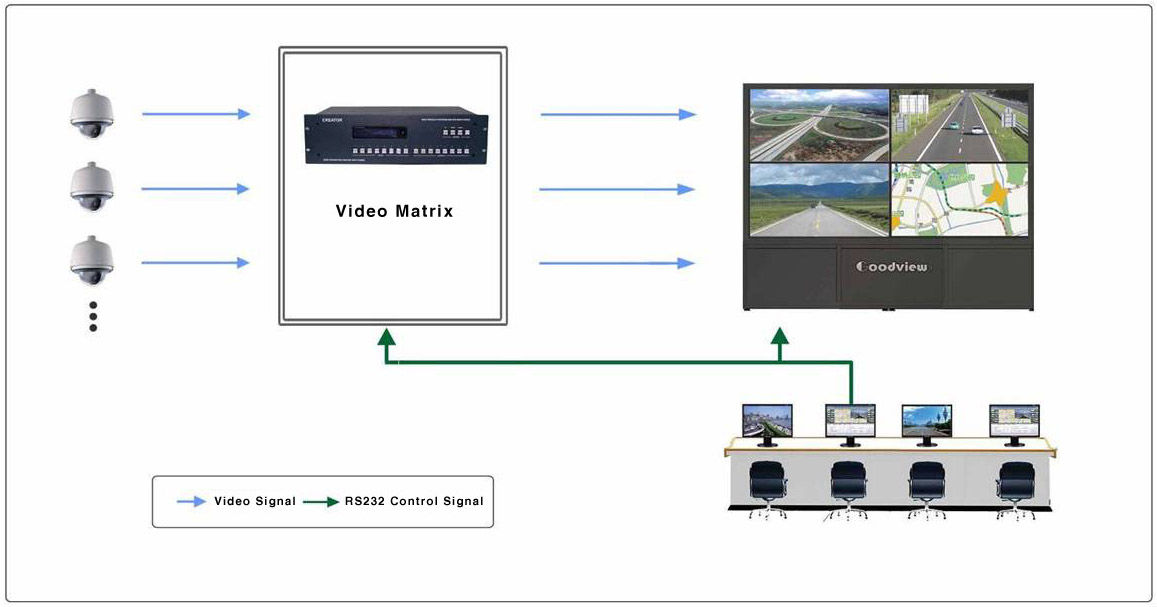

Solution 2

Display different contents on the LCD video wall units for multi input signals by using matrix.

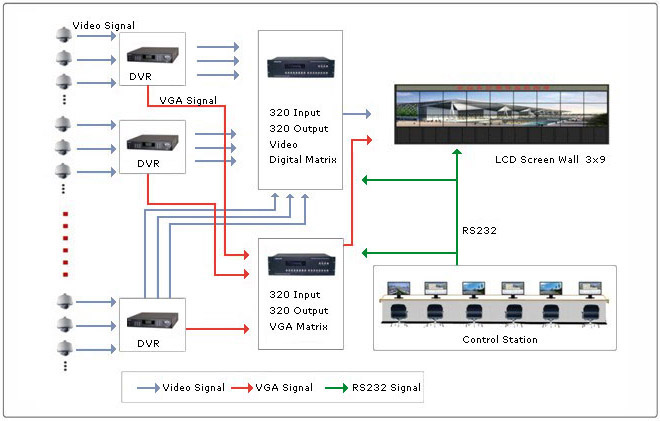

Solution 3

Display different complicated contents on the LCD video wall system for multi input signals with various signals by using processor.




Product information Date Language File
User Manual Universal User Manual 2015/04/09 English
QSG MxxS4&PD&MxxST&MxxSD-V1.0 2015/04/09 English
