  • M32SA
  • M42SA
  • M50SA
  • M55SA


  •   Model
      M32SA
    Android
    Specification
    CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Panel Backlight Type LED
    Screen Size 32''
    Display Size(mm) 697.7(H)×392.3(V)
    Resolution 1366x768
    Brightness 320 cd/㎡
    Contrast Ratio 4000:1
    Viewing Angle 178°
    Aspect Ratio 16:9
    Colors 16.7M
    Life Time 50000 Hours
    Product  Materials Front  Frame Black Plastic
    Housing Black Metal
    Power Switch Yes
    Speakers 2W x2 ,4Ω

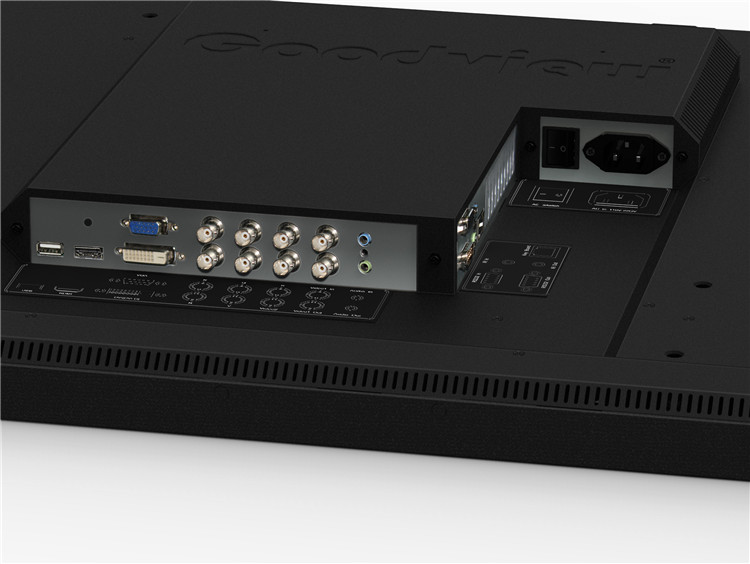

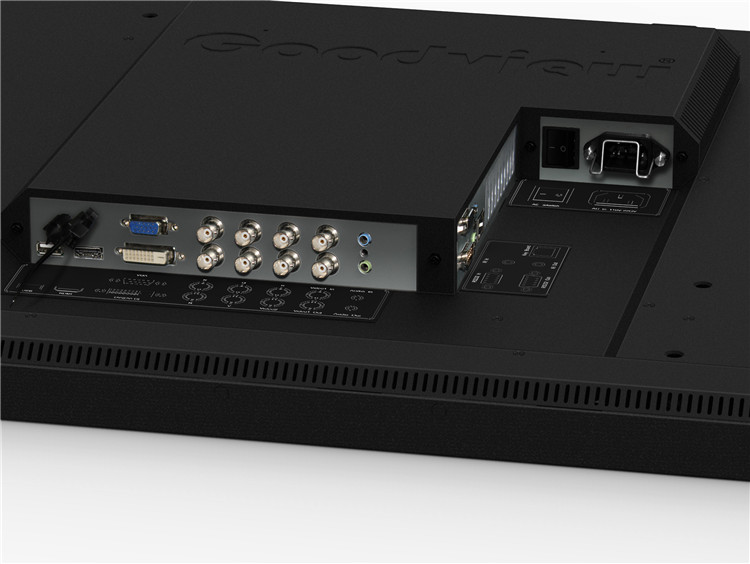

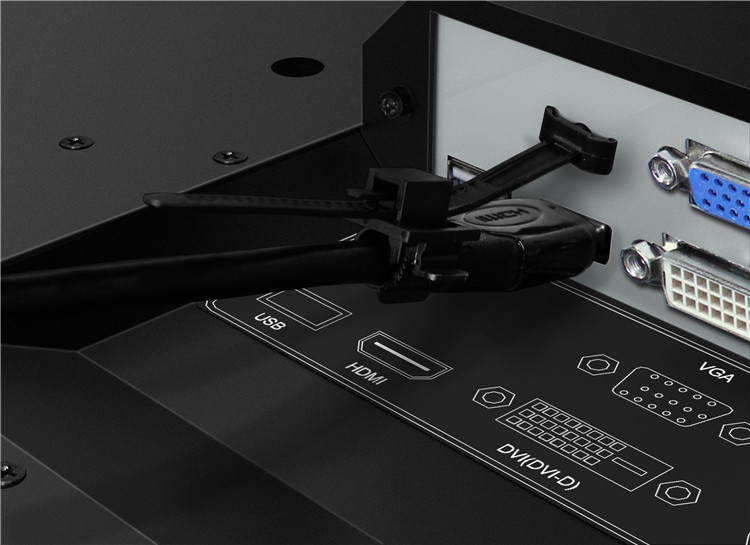

    Input Ports Video VGA x1, HDMI x1
    Audio  Audio x 1
    Other AC IN, USB
    Source Selection VGA, HDMI, USB
    Language English, Chinese (Simplified)
    Power Consumption 43W
    Power Supply AC 110-240V (50Hz-60Hz)
    Product Size(mm) 752(H)×446(V)×57(D)
    Working Temperature 0℃ ~ 40℃
    Storage Temperature -10℃ ~ 60℃ (5℃ ~ 35℃ is recommended)
    Brightness Adjustment Yes (Automatically adjust the brightness value
    according to surrounding environment)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF                 Audio: MP3

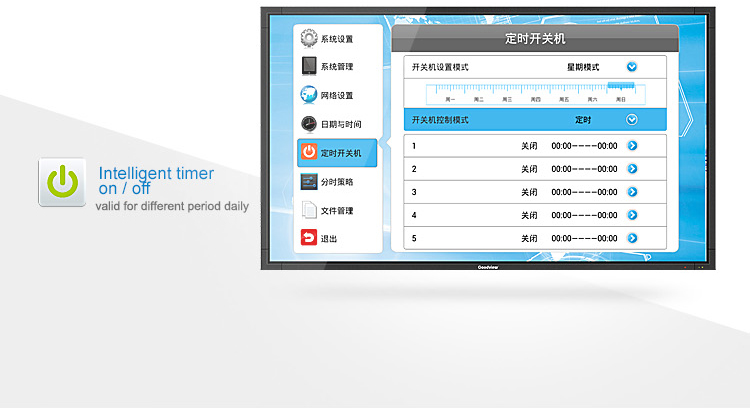

    Timer On/Off Supported by EzPoster and CDMS software
    Scrolling Text
    Multi Zone Display

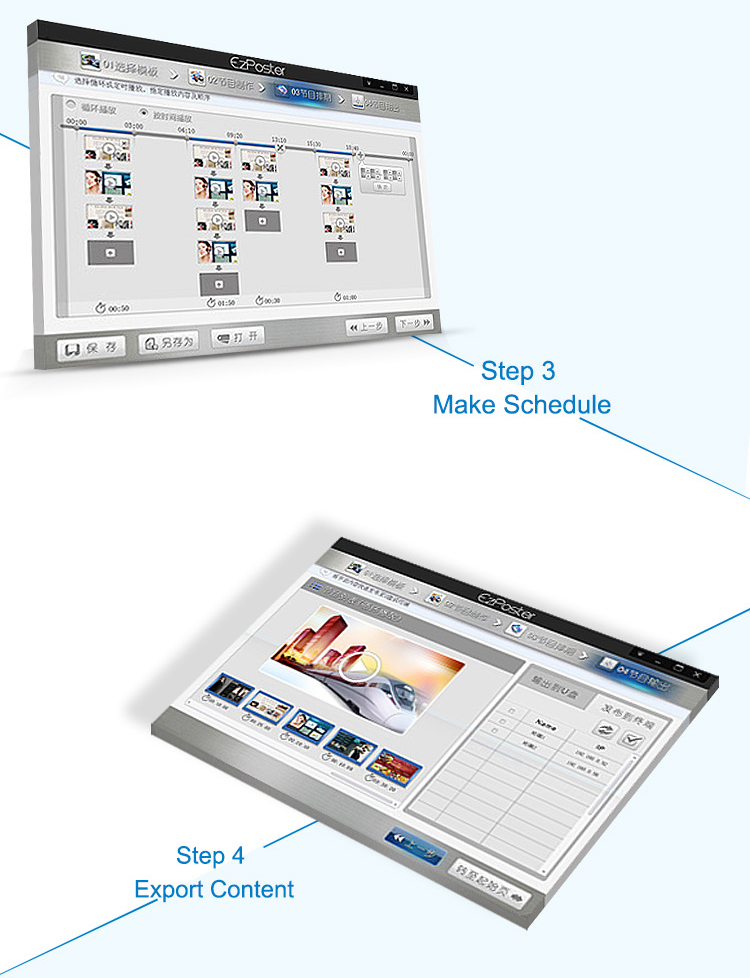

    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Controller, CD, QSG
  •

    Model
      M42SA
    CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Backlight Type LED
    Screen Size 42''
    Display Size(mm) 930.24(H)x523.26(V)
    Resolution 1920x1080
    Brightness 350 cd/㎡
    Contrast Ratio 3000:01:00
    Viewing Angle 178°
    Aspect Ratio 16:09
    Colors 16.7M
    Life Time 50000 Hours
    Materials Front  Frame Black Plastic
    Housing Black Metal
    Power Switch Yes
    Speakers 2W x2 ,4Ω
    Input Ports Video VGA x1, HDMI x1
    Audio  Audio x 1
    Other AC IN, USB
    Source Selection VGA, HDMI, USB
    Language English, Chinese (Simplified)
    Power Consumption 62W


    Power Supply
    Product Size(mm) 986(H)×579(V)×50(D)


    Working Temperature 0℃ ~ 40℃
    Storage Temperature -10℃ ~ 60℃ (5℃ ~ 35℃ is recommended)
    Brightness Adjustment Yes (Automatically adjust the brightness
    value according to surrounding environment)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF
    Audio: MP3
    Timer On/Off Supported by EzPoster and CDMS software
    Scrolling Text
    Multi Zone Display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Controller, CD, QSG
  •

    Model
    M50SA
    CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Backlight Type LED
    Screen Size 50''
    Display Size(mm) 1097.5(H)×618(V)
    Resolution 1920x1080
    Brightness 300 cd/㎡
    Contrast Ratio 1400:1
    Viewing Angle 178°
    Aspect Ratio 16:9
    Colors 16.7M
    Life Time 50000 Hours
    Front  Frame Black Plastic
    Housing Black Metal
    Power Switch Yes
    Speakers 2W x2 ,4Ω
    Video VGA x1, HDMI x1
    Audio  Audio x 1
    Other AC IN, USB
    Source Selection VGA, HDMI, USB
    Language English, Chinese (Simplified)
    Power Consumption 95W
    Power Supply AC 110-240V (50Hz-60Hz)
    Product Size(mm) 1139.5(H)×660(V)×45.6(D)
    Working Temperature 0℃ ~ 40℃
    Storage Temperature -10℃ ~ 60℃ (5℃ ~ 35℃ is recommended)
    Brightness Adjustment Yes (Automatically adjust the brightness value
    according to surrounding environment)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF                 Audio: MP3
    Timer On/Off Supported by EzPoster and CDMS software
    Scrolling Text
    Multi Zone Display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Controller, CD, QSG
  •

    Model
      M55SA
    CPU Dual Core ARM Cortex A9/1.6GHz
    GPU Quad Core ARM Mali-400 MP
    Operation System Android 4.2.2
    RAM DDR3 1GB
    NAND Flash 8GB, Support TF card expansion
    Network WIFI, LAN, 3G (Optional)
    Backlight Type LED
    Screen Size 55''
    Display Size(mm) 1209.6(H)×680.4(V)
    Resolution 1920x1080
    Brightness 400 cd/㎡
    Contrast Ratio 5000:1
    Viewing Angle 178°
    Aspect Ratio 16:9
    Colors 16.7M
    Life Time 50000 Hours
    Materials Front  Frame Black Plastic
    Housing Black Metal
    Power Switch Yes
    Speakers 2W x2 ,4Ω
    Input Ports Video VGA x1, HDMI x1
    Audio  Audio x 1
    Other AC IN, USB
    Source Selection VGA, HDMI, USB
    Language English, Chinese (Simplified)
    Power Consumption 117W
    Power Supply AC 110-240V (50Hz-60Hz)

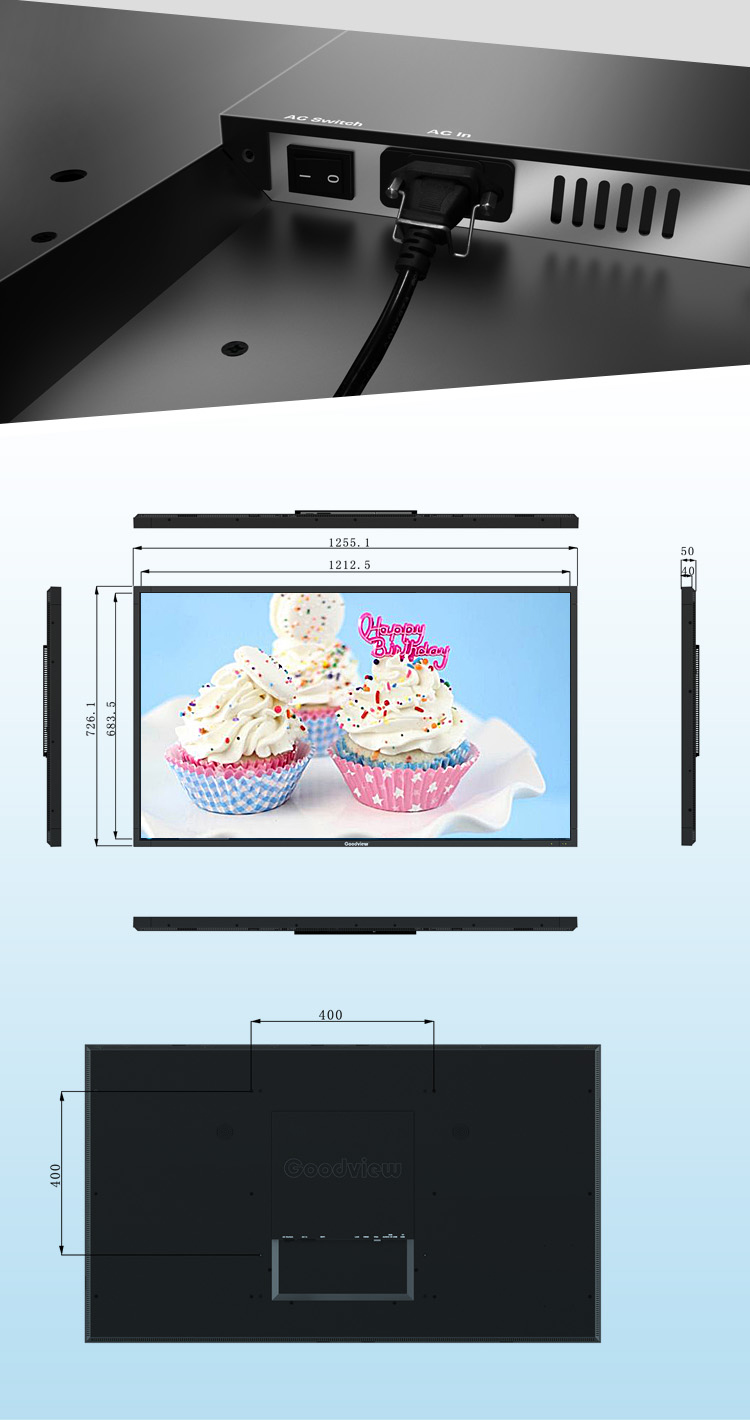

    Product Size(mm) 1255(H)×726(V)×50(D)
    Working Temperature 0℃ ~ 40℃
    Storage Temperature -10℃ ~ 60℃ (5℃ ~ 35℃ is recommended)
    Brightness Adjustment Yes (Automatically adjust the brightness value according to
    surrounding environment)
    Supported Media Format Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv
    Picture: JPG, JPEG, BMP, PNG, GIF                 Audio: MP3
    Timer On/Off Supported by EzPoster and CDMS software
    Scrolling Text
    Multi Zone Display
    Supported Software EzPoster: Support Standalone and Intranet control function
    CDMS: Support Internet control function
    Accessories Remote Controller, CD, QSG

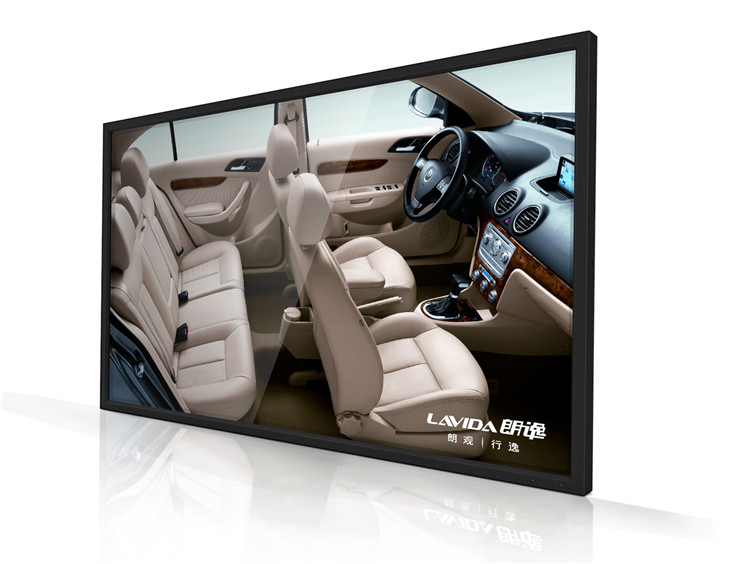

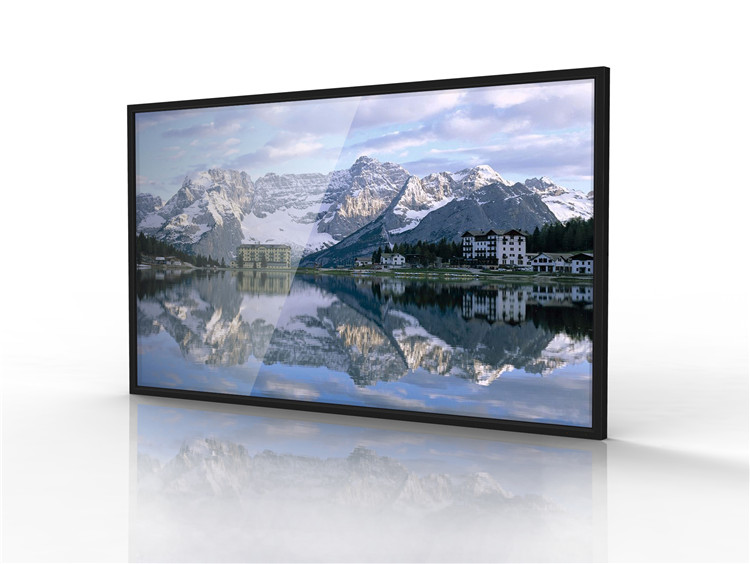

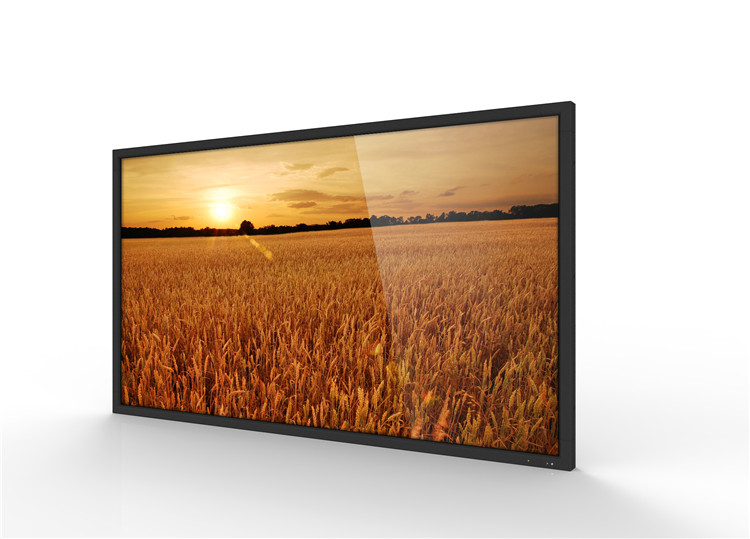

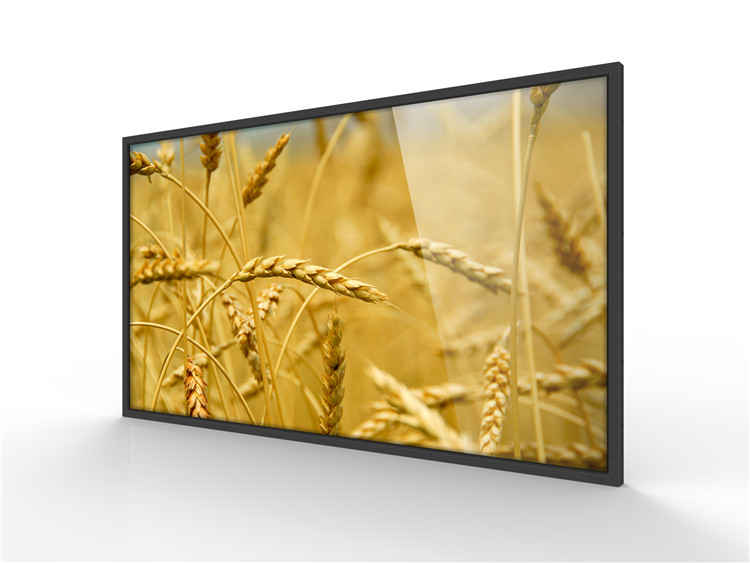

MxxSA series LCD Large Screen Display, LED backlight, built in powerful Android media player, support 7x24 working.

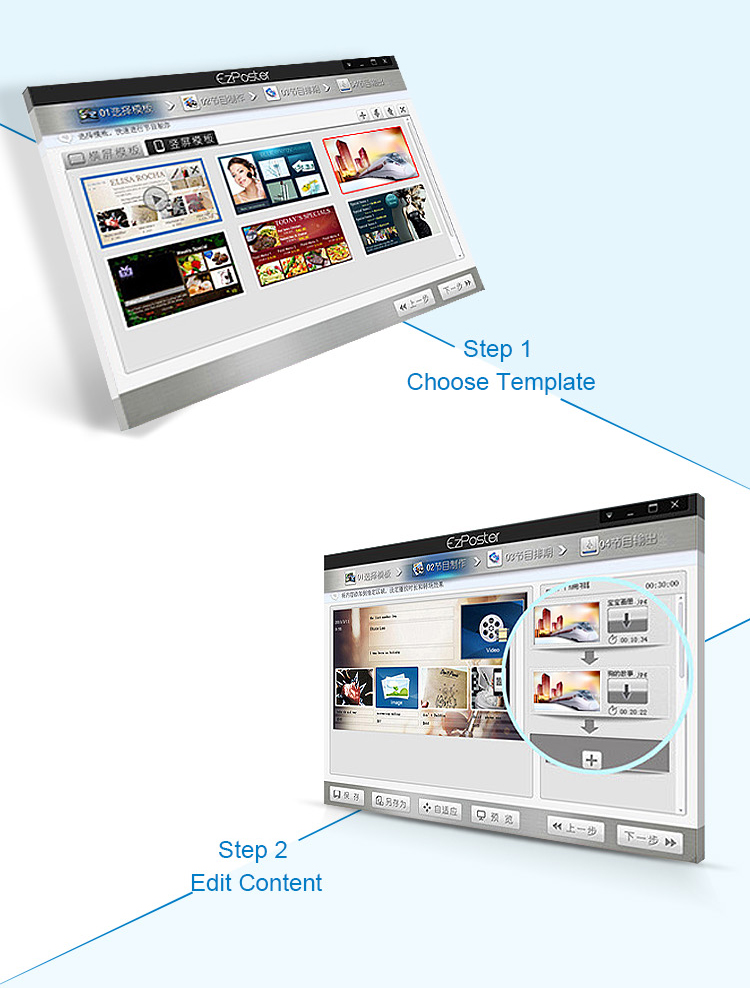

Online management, editing and remote publishing are available by Goodview digital signage software EzPoster and CDMS.

Widely used in public environments, fast food chains, ticket center, school, airport, hotel lobby, exhibition, shopping mall and so on.

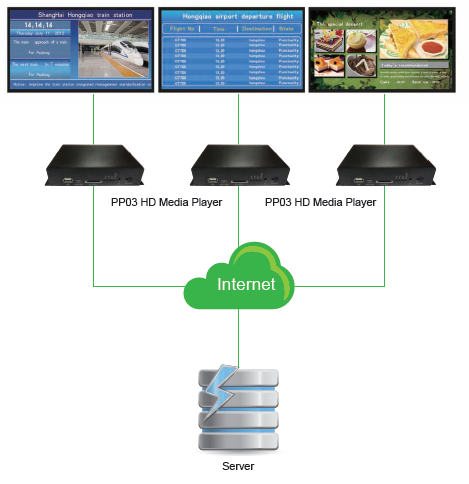

Display Solution

MSA digital signage display + Digital signage software










Product information Date Language File
QSG LxxH7&PFxxH7&MxxSA-V1.0 2015/04/09 English
User Manual LCD Digital Signage Display User Manual 2015/04/09 English
